• PJ2 - Public Duck Call Jig (Upslope)

All of our jigs are made from tool steel and hardened to 61-64Rc or greater (prior to cutting the sound board) to resist standard steel cutting tools such as files and bandsaw blades.  These jigs CAN NOT be altered with standard tools.

Need help choosing a jig?   CLICK HERE!

Cork Notch Height/length:

.165" (3/16" cork) / .355" deep.     Suggested wedges/cork:   316DCC, 316HDC, 177SW, or use 162SW for double reed applications.  Sand thickness for desired fit.
Suggested Reed: WCDR-1,2,3,4,5,6, or SDR-1 Duck Reeds
Bore Size: .6245 - .626" (for 5/8 tenons)
Suggested Tone Channel Dia: 15/64" or 1/4"
Board Length: Back of cork notch to tip:  1.720"
Deck Height: 0.330" - 0.335"
Tone Channel Depth starting point: .3" from the end of the sound board

This is an UPSLOPE design jig For a Parallel design use PJ1.  Please read the entire description prior to contacting us with questions about the public jigs.

"Upslope" means that the reed slopes upwards at the end - compared to the centerline of the keg.  "Parallel" means the reed is parallel to the centerline of the keg.

D1 & D2 extra reeds (D1-R-15 or D2-R15) are NOT RECOMMENDED for use with the public jig as they are very narrow reeds, and the .014" reed is a little thick for use with a single reed AR style call.

The public offering jig is a production version jig and each one is just like the other, it is not custom in any way other than when the jig was designed it was customized specifically for reproduction by Wade Carpenter.  It is NOT perfect, nor does it have the same surface finish on the tone board that comes on the Custom Jigs.  This is on purpose.  The sound board this jig creates "straight off the jig" is marginal at best.  The public jig is not meant to create a finished product, it is to help get beyond the initial shaping stages of the sound board to get to a point at which one can start learning to make their own soundboard.  The public jig is not used to create any products sold here.  If you are interested in the sound the public jig creates directly from the jig, it is suggested to post up on the various call making forums for opinions from the many users of this jig.  We do not have any parts cut from this jig, nor sound files of a sound board from this jig since it is not intended for "final production" of sound boards.

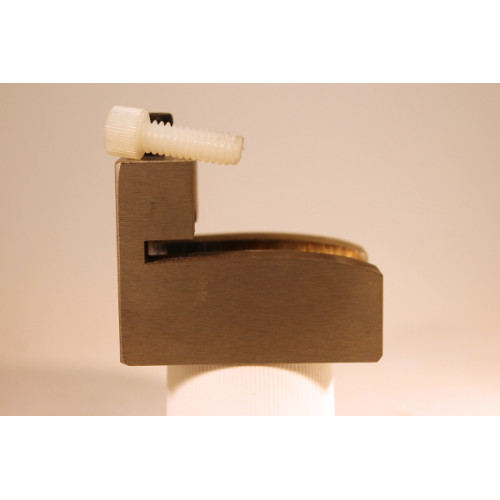

The public offering version is a good starting point for you to design your own soundboards. This jig is a learning tool, and not a jig designed to give a finished product.  This jig will help you LEARN how to make calls, it will not make calls for you.  There will be a light scribe line of both sides of the jig.  This scribe line is a starting point for you to reference when locating the end of your tone channel.  It is not a "set in stone" dimension, only a guide to help you get started.  There are 2 tapped holes on the bottom of the jig.  The intended purpose of these tapped holes (1/4-20 thread) is to allow adjustment of the keg tenon in the jig for experimenting.  These take 1/4"-20 set screws (not included).  These holes allow you to thread a bolt or set screw through the bottom, and to gently push up on the insert in different spots, to adjust where your base line is - for example if you were making an upslope reed design, and wanted a more accentuated up-slope, you could thread in the bolt under the cork notch and push the back up just a little.  There are two set screws included with the jig, a Steel socket head cap screw and a nylon socket head cap screw (can sometimes reduce the marring to the keg from the set screw).  Remember, do not sand, grind, or use carbide tools on the jig unless you are purposefully trying to alter the shape.  Jigs are designed to withstand normal steel cutting tools such as files and saws.  Do not use a hammer on, drop, or abuse any hardened part or tool as it may fracture and cause injury.

Remember, do not sand, grind, or use carbide tools on the jig unless you are purposefully trying to alter the shape.  Our Jigs are designed to withstand normal steel cutting tools with a Rockwell hardness of 58Rc or less - less being better for the jig (typical Nicholson files are approximately 55Rc) but the jigs can NOT stand up to carbide, diamond, grinding or abrasives (like sand paper).   Our jigs are through hardened A2 tool steel and are 61-64Rc hardness.  We suggest avoiding tools made of material that is harder than 60Rc.  Some import files have been found to be harder than the industry standard of 55-58Rc - use at your own risk.  Some HSS or Cobalt tools (such as RotoZip bits etc) can possibly be harder than 60Rc and may prematurely wear on your jig.  We suggest you test any tool you use on the bottom or corner of the jig to be sure its not removing jig material prior to use on the tone board portion of your jig.

Do not use a hammer on any hardened part or tool as it may fracture and cause injury.

Interested in having your own "Public Jig"?  We offer manufacturing services as well as products.  If you have a design or idea you would like to discuss - feel free to email us.
